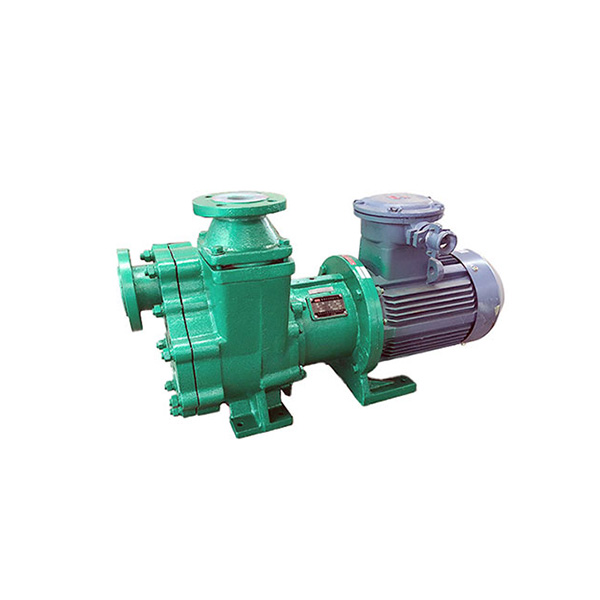

FZB fluoroplastic self-priming pump

The flow parts of the FZB self-priming pump are all made of fluoroplastics and have self-priming function....


Description

Product Tags

Overview

The flow parts of the FZB self-priming pump are all made of fluoroplastics and have self-priming function. Therefore, the FZB self-priming pump is widely used, such as: pumping the corrosive liquid in the underground tank to the target location, pumping the bottom end The acid and alkali in the acid-base tank without outlet are pumped to the target location, or used for circulation among multiple acid-base tanks, or for unloading acid and so on.



Model TypeFZB (self-priming centrifugal pump)
Flow range3.6m³/H-100m³/H(60L/min-1666L/min)
Head range18M-45M (60FEET-150FEET)
Motor power2.2KW-30KW (2.9HP-40HP)
Inlet 25-100mm
Outlet25-80mm
Speed 2900r/min,1450r/min or as customer required
NPHSr3.0-6.0m(10-20feet)
EFF20%-60%
MaterialFEP,PFA,PTFE,PVDF,PP,lined
Self-priming height1.0-3.0m (3-10feet)
Voltage220V-600V,50Hz -60 Hz or as customer required
ConnectionFlange butt joint(ASME-ANSI-JIS-GB) or as customer required
Brand nameTEFLOW PUMP

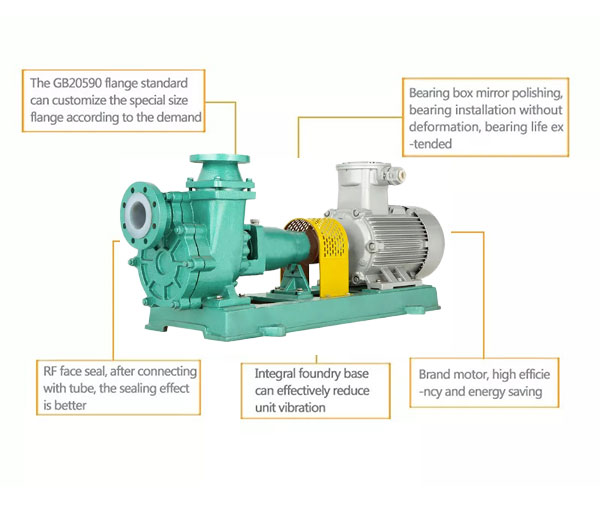

CharacteristicsFZB fluoroplastic self-priming centrifugal pump can be equipped with external single-end machine seal, external container machine seal plus flushing water, customizable API682 standard flushing scheme.
MediumAcid pump, lye pump, sea water pump, salt water pump, sewage pump
Advantages1. Treatment of corrosion-resistant, high-temperature and acid-resistant wastewater.
2. The low pool absorbs water.
3. The moving ring is made of silicon carbide and ceramic.


Flow range: 3.6m³/h-100m³/h

Lift range: 18m-45m

Power range: 2.2kw-18.5kw

Applicable medium: any concentration of acid, alkali, salt, organic solvent, etc.
