Low Pressure Permanent Magnet Screw Air Compressor

The PM motor uses Nd-Fe-b magnetic materials, which have excellent magnetic properties....


Description

Product Tags

1. Permanent magnetic variable frequency motor

A permanent magnet frequency conversion motor uses the same 180 degrees of the high-temperature permanent magnet material.

As the higher pressure machines in the range, this ensures the permanent magnet motor does not suffer any.

There will be no demagnetization problems due to overheating.

Our PM motor has achieved the highest level nationally for energy efficiency.

The PM motor uses Nd-Fe-b magnetic materials, which have excellent magnetic properties.

And a bearing-free design, there is no maintenance to carry out.

3. Low-pressure specialized airend

Precision patent profile airend reduces leakage and increases the compression area to ensure that the airend runs the lowest energy consumption. On average, our energy-efficient airend can save 8%-10% energy.

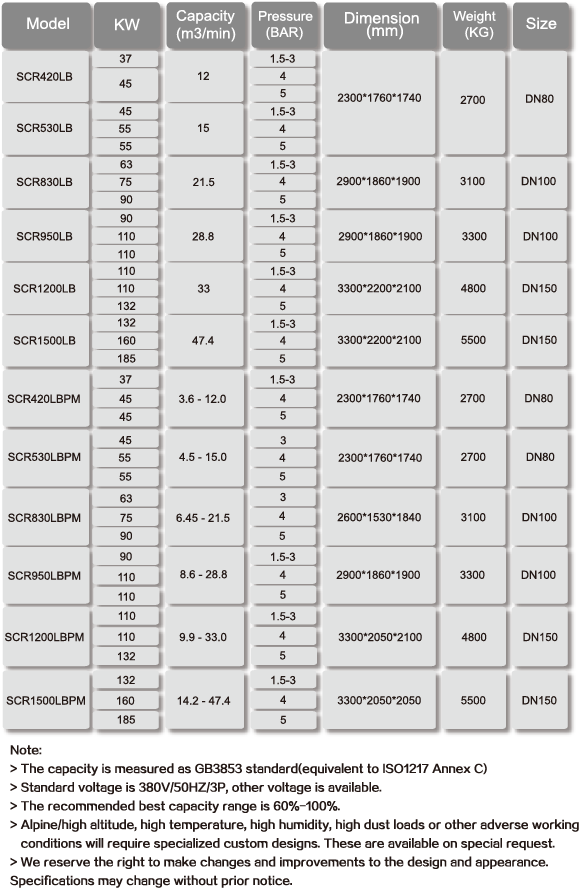

Technical Parameters


Model: SCR420LBPM~SCR1500LBPM

Power:37KW~185KW

Capacity:12~47.4m3/min

Pressure:1.5~5bar
