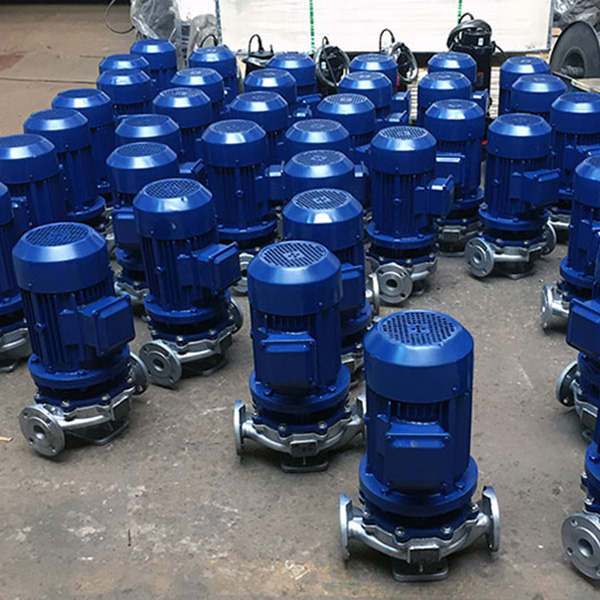

ISG series Stainless Steel vertical centrifugal pipeline water pump power hydraulic booster pump
Products Description
ISG series single-suction pipeline centrifugal pumps are selected by our technical personnel and domestic pump experts to adoptthe performance parameters of IS type centrifugal pumps, in the general vertical pump based on a clever combination of design, atthe same time, according to the use of temperature, media on the basis of ISG derived suitable for hot water, high-temperature corrosion-resistant chemical pumps, oil pumps. The series of products with high efficiency and energy saving, low noise, reliableperformance and so on.
1. The pump is a vertical structure, the inlet and outlet diameters are the same, and they are located on the same center line. The flanged valve is installed in the pipeline, with a compact and beautiful appearance, small footprint, and low construction investment. If equipped with a protective cover, it can be used outdoors .
2. The impeller is directly installed on the extension shaft of the motor, the axial dimension is short, the structure is compact, the bearing arrangement between the pump and the motor is reasonable, and the radial and axial loads generated by the pump operation can be effectively balanced, thus ensuring the smoothness of the pump Running, low vibration and low noise.
3. The shaft seal adopts mechanical seal or mechanical seal combination, imported titanium alloy sealing ring, medium-sized high temperature resistant mechanical seal and hard alloy material, wear-resistant seal, which can effectively prolong the service life of mechanical seal.
4. Easy installation and maintenance, no need to move the pipeline system, just remove the union nut of the pump from all rotor parts.
5. According to the requirements of use, the flow and head need to be operated in series or in parallel.
6. Install vertical and horizontal pumps according to the requirements of pipeline layout.
Specification
flow | 2~2000m3/h | ||||
pressure | 0.05~1.0MPa | ||||
power | 1.1KW-630KW | ||||
Voltage | Accept order | ||||
structure | Centrifugal pump | ||||
Drive method | electric | ||||
main material | Various stainless steel, cast iron, custom materials are acceptable | ||||
OEM | accept |
Model Number:ISG
Pressure:0.05~1.0MPa
flow:2~2000m3/h
power:1.1KW-630KW
Customized support:OEM, ODM, OBM
