IH type High temperature corrosion resistant centrifugal chemical pump
Product Overviews
The IH type chemical pump is a single-stage single-suction (axial suction) cantilever centrifugal pump for transporting liquids that are corrosive and have a viscosity similar to water without solid particles. It has the characteristics of wide performance range, high efficiencyand convenient maintenance.
Features:
1. High efficiency and energy saving: IH horizontal stainless steel chemical centrifugal pump is 3~5% more efficient than F type, which is an ideal energy-saving product;
2, shaft seal: shaft seal is a packing or mechanical seal, two sealed pump cover can be universal;
3. Suspension components: The suspension components adopt universal design, high degree of generalization and high reliability.
4. Material: The main over-current components are made of stainless steel, which can meet the transportation of different media and have a long service life.
5. Fully sealed shaft: The shaft is sealed with “O” ring to ensure that the shaft does not touch the medium and improve the life of the shaft.
Product Detail

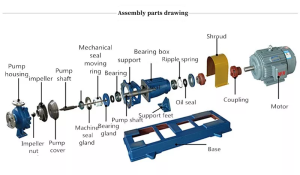

The main components of IH stainless steel chemical pump are pump body, impeller, seal ring, impeller nut, pump cover, sealing parts, intermediate bracket, shaft and suspension components.
Application
IH chemical pump is suitable for chemical, petroleum, petrochemical, metallurgy, light industry, printing and dyeing, pharmaceutical, environmental protection, seawater desalination, offshore oil, paper, food and other industrial sectors to transport organic or inorganic chemical media and petroleum products without solid particles. Corrosive liquid.
Production Parameter

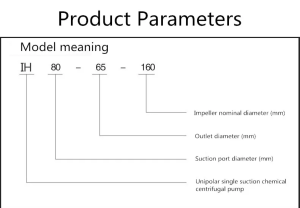

Model Number:IH
Structure:Single-stage Pump
Suction caliber:50-200 (mm)
Flow:6.3-400 (m3 / h)
Discharge port diameter:32-150 (mm)
