Overview

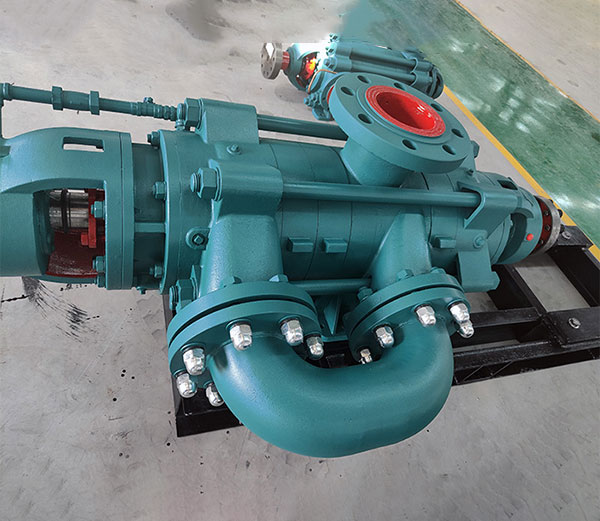

TSWA type horizontal multi-stage centrifugal pump is a new generation product improved by our company on the basis of TSW type pump by absorbing the advantages of various multi-stage centrifugal pumps at home and abroad. It meets the quality standard of JB/T53058-93.

This series of pumps has the advantages of energy saving, stable operation, low noise and low vibration due to the use of a good hydraulic model and a low-speed motor. This series of pumps are mainly suitable for water supply and drainage of urban high-rise buildings and fire water, water supply and drainage in factories and mines, long-distance water delivery, water in production process circulation, HVAC circulation, domestic water and other purposes.

Working condition

1. It is suitable for conveying clean water and substances with physical and chemical properties similar to clean water, the volume of solid insoluble matter does not exceed 0.1% per unit volume, and the particle size is less than or equal to 2mm;

2. Medium temperature: -15℃-80℃;

3. Working pressure: system pressure ≤ 3.0MPa; namely: system pressure = inlet pressure + pump working pressure ≤ 3.0MPa;

4. The temperature of the surrounding environment should be lower than 40℃, and the relative humidity should not exceed 95%;

5. Since this type of pump is mainly made of cast iron, the conveyed medium should be non-corrosive. Note: If the medium contains fine particles or is highly corrosive, please specify it when ordering, so as to provide more reliable products.

Model Description

100TSWA-5

(100)The diameter of the pump suction port is 100m

(S)single suction impeller structure

(W)Conveying clean water or a medium similar to clean water with a temperature of ≤80°C

A-initial update design

PERFORMANCE PARAMETER:
