CDL Stainless Steel Vertical Multistage Pump

CDL/CDLF is a multifunctional product that can transport various media from tap water to industrial liquids, and is suitable for different temperature, flow and pressure ranges. CDL is suitable for non-corrosive liquids, and CDLF is suitable for mildly corrosive liquids....


Description

Product Tags

Overview

CDL/CDLF is a multifunctional product that can transport various media from tap water to industrial liquids, and is suitable for different temperature, flow and pressure ranges. CDL is suitable for non-corrosive liquids, and CDLF is suitable for mildly corrosive liquids.


Application

  • Water supply: water plant filtration and transmission, water plant divisional water supply, main pressurization, high-rise building pressurization.
  • Industrial booster: process water system, cleaning system, high pressure flushing system, fire fighting system.
  • Industrial liquid transportation: cooling and air conditioning systems, boiler feed water and condensing systems, machine tool accessories, acids and alkalis.
  • Water treatment: ultrafiltration system, reverse osmosis system, distillation system, separator, swimming pool.
  • Irrigation: farmland irrigation, sprinkler irrigation, drip irrigation.



Structure

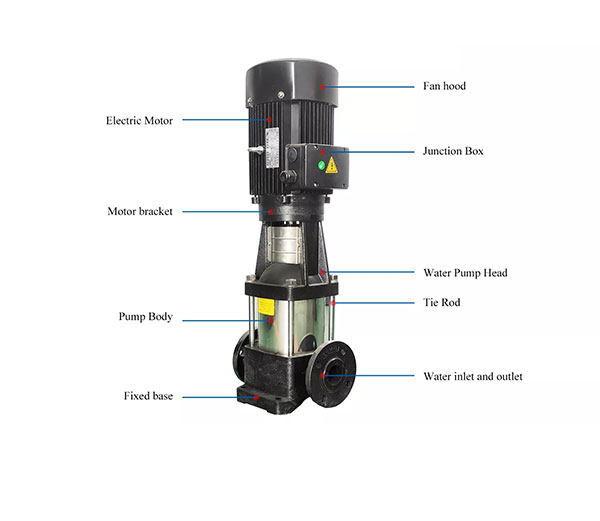

CDL/CDLF is a non-self-priming multi-stage centrifugal pump with standard motor. The motor shaft is directly connected to the pump shaft through the pump head with a shaft coupling, and the tie rod bolts fix the pressure-resistant cylinder and the overflow parts on the pump head and the water inlet and outlet sections. In between, the pump inlet and outlet are on the same line at the bottom of the pump; the pump can be equipped with an intelligent protector as required to effectively protect the pump from dry running, phase loss, and overload.


Performance parameter

ModelHeadFlowMotor PowerRotating speed
(m)(m3/h)(KW)(r/min)
CDL1-211.510.372900
CDL1-31710.372900
CDL1-422.510.372900
CDL1-52810.372900
CDL1-633.510.372900
CDL1-73910.372900
CDL1-84510.552900
CDL1-95110.552900
CDL1-105710.552900
CDL1-179511.12900
CDL1-1910611.12900
CDL1-2111711.12900
CDL1-2312811.12900
CDL1-2513911.52900
CDL1-2715011.52900
CDL1-3016611.52900
CDL1-3318312.22900
CDL1-3620012.22900
CDL2-21520.372900
CDL2-32220.372900
CDL2-43020.552900
CDL2-53720.552900
CDL2-64520.752900
CDL2-75220.752900
CDL2-96721.12900
CDL2-118221.12900
CDL2-139821.52900
CDL2-1511221.52900
CDL2-1813622.22900
CDL2-2216522.22900
CDL2-2619823.02900
CDL3-2930.372900
CDL3-31430.372900
CDL3-41930.372900
CDL3-52330.372900
CDL3-62830.552900
CDL3-73230.552900
CDL3-83730.752900
CDL3-94230.752900
CDL3-104730.752900
CDL3-115131.12900
CDL3-125531.12900
CDL3-136031.12900
CDL3-156931.12900
CDL3-177931.52900
CDL3-198831.52900
CDL3-219832.22900
CDL3-2310732.22900
CDL3-2511632.22900
CDL3-2712432.22900
CDL3-2913332.22900
CDL3-31142332900
CDL3-33151332900
CDL3-36168332900
CDL4-21540.372900
CDL4-32440.552900
CDL4-43240.752900
CDL4-54041.12900
CDL4-64841.12900
CDL4-75641.52900
CDL4-86441.52900
CDL4-108142.22900
CDL4-129542.22900
CDL4-14112432900
CDL4-16129432900
CDL4-19153442900
CDL4-22178442900
CDL8-2/1980.752900
CDL8-21880.752900
CDL8-32781.12900
CDL8-43681.52900
CDL8-54582.22900
CDL8-65482.22900
CDL8-87383.02900
CDL8-109284.02900
CDL8-1211184.02900
CDL8-1413085.52900
CDL8-1614885.52900
CDL8-1816787.52900
CDL8-2018687.52900
CDL12-220121.52900
CDL12-330122.22900
CDL12-4401232900
CDL12-5501232900
CDL12-6601242900
CDL12-770125.52900
CDL12-880125.52900
CDL12-991125.52900
CDL12-10101127.52900
CDL12-12121127.52900
CDL12-1414112112900
CDL12-1616212112900
CDL12-1818312112900
CDL16-222162.22900
CDL16-334163.02900
CDL16-446164.02900
CDL16-558165.52900
CDL16-670165.52900
CDL16-782167.52900
CDL16-894167.52900
CDL16-1011816112900
CDL16-1214116112900
CDL16-1416616152900
CDL16-1618916152900
CDL20-110201.12900
CDL20-223202.22900
CDL20-335204.02900
CDL20-447205.52900
CDL20-558205.52900
CDL20-670207.52900
CDL20-782207.52900
CDL20-89420112900
CDL20-1011820112900
CDL20-1214220152900
CDL20-1416620152900
CDL20-172022018.52900
CDL32-10-19321.52900
CDL32-1013322.22900
CDL32-20-220323.02900
CDL32-2027324.02900
CDL32-30-233325.52900
CDL32-3040325.52900
CDL32-40-246327.52900
CDL32-4053327.52900
CDL32-50-26032112900
CDL32-506732112900
CDL32-60-27432112900
CDL32-608132112900
CDL32-70-28832152900
CDL32-709532152900
CDL32-80-210232152900
CDL32-8010932152900
CDL32-90-21173218.52900
CDL32-901243218.52900
CDL32-100-21313218.52900
CDL32-1001383218.52900
CDL32-110-214632222900
CDL32-11015332222900
CDL32-120-216032222900
CDL32-12016732222900
CDL32-130-217432302900
CDL32-13018132302900
CDL32-140-218932302900
CDL32-14019632302900
CDL42-10-116423.02900
CDL42-1020424.02900
CDL42-20-232425.52900
CDL42-2041427.52900
CDL42-30-25242112900
CDL42-306142112900
CDL42-40-27342152900
CDL42-408142152900
CDL42-50-2934218.52900
CDL42-501014218.52900
CDL42-60-211342222900
CDL42-6012242222900
CDL42-70-213442302900
CDL42-7014242302900
CDL42-80-215442302900
CDL42-8016242302900
CDL42-90-217442302900
CDL42-9018342372900
CDL42-100-219442372900
CDL42-10020342372900
CDL42-110-221742452900
CDL42-11022542452900
CDL42-120-223842452900
CDL42-12024742452900
CDL42-130-225942452900
CDL65-10-113654.02900
CDL65-1020655.52900
CDL65-20-226657.52900
CDL65-20-13365112900
CDL65-204065112900
CDL65-30-24665152900
CDL65-30-15365152900
CDL65-30606518.52900
CDL65-40-2666518.52900
CDL65-40-17365222900
CDL65-408065222900
CDL65-50-28865302900
CDL65-50-19565302900
CDL65-5010265302900
CDL65-60-211065302900
CDL65-60-111765372900
CDL65-6012465372900
CDL65-70-213265372900
CDL65-70-113965372900
CDL65-7014665452900
CDL65-80-215465452900
CDL65-80-116165452900
CDL85-10-114855.52900
CDL85-1020857.52900
CDL85-20-23085112900
CDL85-204185152900
CDL85-30-2528518.52900
CDL85-306485222900
CDL85-40-27585302900
CDL85-408685302900
CDL85-50-29885372900
CDL85-5011085372900
CDL85-60-212285452900
CDL85-6013485452900
CDL120-1018.5120112950
CDL120-20-134.512018.52950
CDL120-2040120222950
CDL120-3061120302950
CDL120-40-176120372950
CDL120-50-197120452950
CDL120-60-1118120552950
CDL120-70145120752950
CDL150-10-112.5150112950
CDL150-1018.5150152950
CDL150-20-135150222950
CDL150-30-249150302950
CDL150-3063150372950
CDL150-40-177150452950
CDL150-50-292150552950
CDL150-60130150752950


Flow Rate: 2-162m3/h

Head Lift: 36-200m

Power: 1.1-132kW
