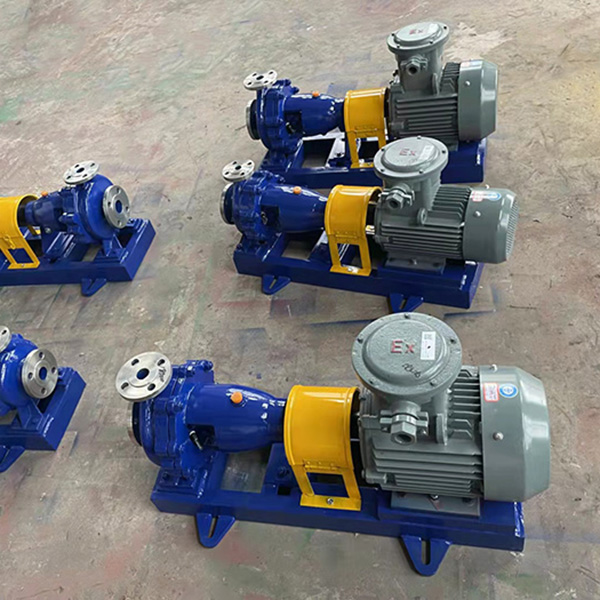

CZ series standard chemical pump

CZ series standard chemical pumps are horizontal, single-stage and single suction centrifugal pumps....


Description

Product Tags

Overview

CZ series standard chemical pumps are horizontal, single-stage and single suction centrifugal pumps.

Conveying low temperature or high temperature liquid; Neutral or corrosive liquid; Clean or liquid containing solid particles. It is especially suitable for chemical and petrochemical industries, oil refineries, paper mills, pulp industry and sugar industry.
Performance parameter range

Speed: 2960r/min, 1480r/min

Flow: 2-2000m³/h Head: H≤160m

Working temperature: -40– +260℃

Working pressure: ≤2.5Mpa

Direction of rotation: The pump rotates clockwise as seen from the drive end

Applicable scope

CZ type standard chemical process pump can transport mineral and organic acid solutions such as concentrated acid, nitric acid, hydrochloric acid and phosphoric acid at various temperatures and concentrations; alkaline solutions such as sodium hydroxide and sodium carbonate at various temperatures and concentrations; various salts Solutions; various liquid petrochemical products, organic compounds and other corrosive liquids. This type of pump is suitable for oil refinery, petrochemical industry coal processing engineering, low temperature engineering, paper industry, sugar industry, water supply plant, seawater desalination plant, power plant, environmental protection engineering and shipbuilding industry.

Product parameters


Product Name
CZ series single stage single suction standard chemical centrifugal pump

flow
6-2000m3/h

pressure
0.08~2.5MPa
power
1.1kw~160kw
Voltage
Accept order
structure
Centrifugal pump
Drive method
electric
main material
Various stainless steel, Carbon steel
OEM
accept


Model Number:CZ

Power Source:Electric

Flow:6-2000m3/h

Power:1.1kw~160kw

Customized support:OEM, ODM
