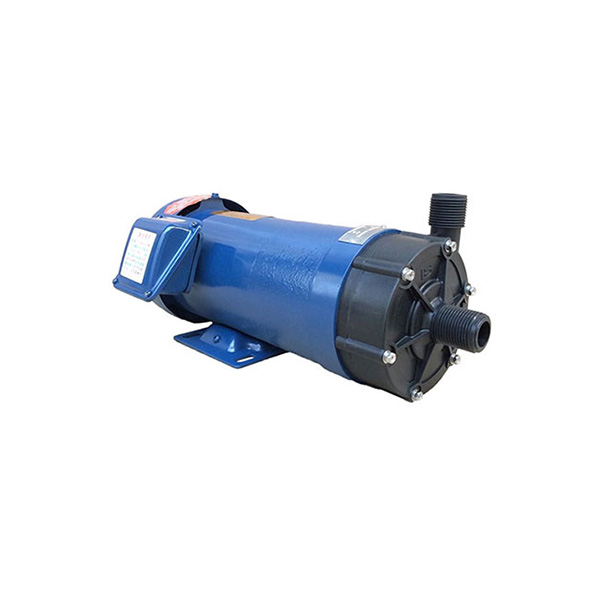

MP Miniature Magnetic Drive Pump
Overview
Magnetic drive circulate pump is a full-sealed pump,for motor connecting shaft and impeller are separately equipped with magnetic materials,they attract each other and coupled.It’s unnecessary to fit with traditional shaft seal.The rotation torsion of motor drives impeller to rotate through the attraction between driving magnet and driven magnet.The shortcoming of present customary magnetic drive pump is that rotation is absolutely prohibited under the condition of lacking liquid,otherwise,the machine will be destroyed,resulted in unnecessary troubles for customer.HOP adopts special ceramics as shaft bearing,characterizing strong resistance for abrasion and corrosion.
Magnetic drive circulate pump is generally designed for no shaft seal,completely avoids defects of pollution after corrosion caused by liquid leakage,which exists in traditional mechanical shaft seal pump.It is the optimum liquid transport pump on the industrial equipment.
Application
Can be used to transfer clean water or other liquid similar to water in physical and chemical
properties
Suitable for lifting water from the well,sprinkling irigation in garden,pressure boosting ofrunning water and supporting equipment etc.
Features:
1. Magnetic drive. Shaft-free design, completely leak-proof. Will not cause chemical leakage.
2. The material is FEPP, which is suitable for most chemical acid and alkali liquid transportation and injection molding.
3. The interface is available with threaded and hose connections.

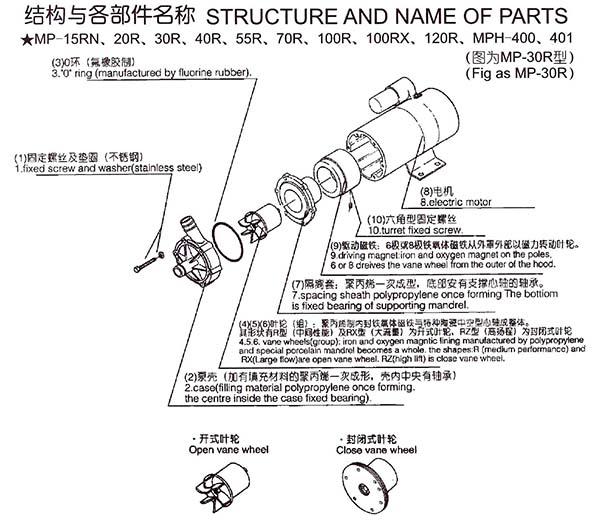

Structure:Single-stage Pump
Structure:Magnetic circulating pump
Impeller:Engineering plastic polypropylene
Customized support:OEM
