CQB-G High Temperature Magnetic Drive Pump

Our factory specializes in CQB-G High Temperature Magnetic Drive Pump, and can also be customized non-standard, please click the button below to contact us....


Description

Product Tags

Overview

CQB-G circulating magnetic pump (CQB-G high temperature resistant magnetic drive pump) adopts multiple circulating cooling structure to ensure the reliability and stability of the motive force and magnetic drive, and adopts pin coupling to reduce the noise and noise of the pump. Vibration, easy disassembly and pin coupling are used at the same time, so that the structure of the circulating magnetic pump is increased, which is more conducive to the heat dissipation of the CQB-G type high temperature resistant magnetic drive pump. At the same time, the magnetic drive heat preservation pump is also very convenient for users to maintain or replace parts. The outer rotor part of the circulating magnetic pump is also designed with cooling fan blades to ensure the stability of the magnetic steel.



Main parameters of CQG type high temperature magnetic drive centrifugal pump:

Flow rate: 1~100m3/h

Head: 15~80m

Operating temperature: ≤350℃

Motor power: 0.75~55kw

Material: 1Cr18Ni9Ti (304, 316, 316L, Hastelloy 276 can be customized)

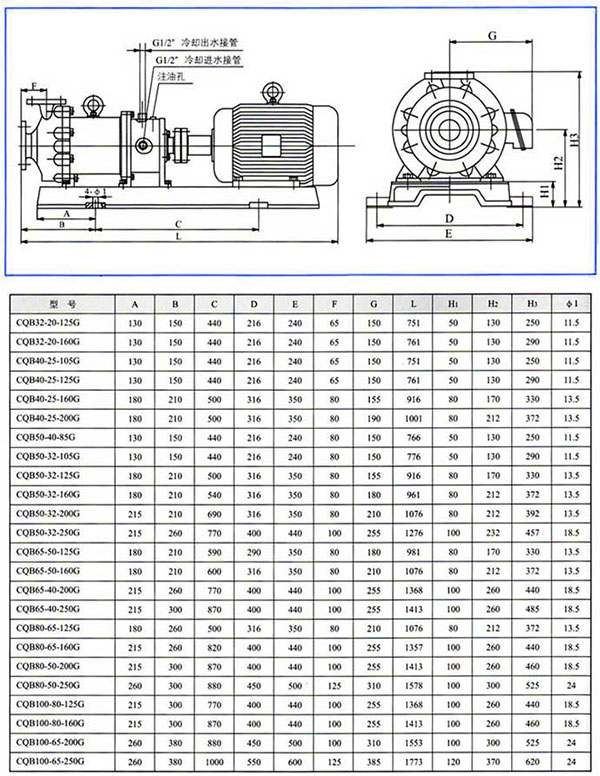

Mounting size



Structure:Single-stage Pump

Model Number:CQB-G

Material:stainless steel(304,316,316L)

Customized support:OEM, ODM
