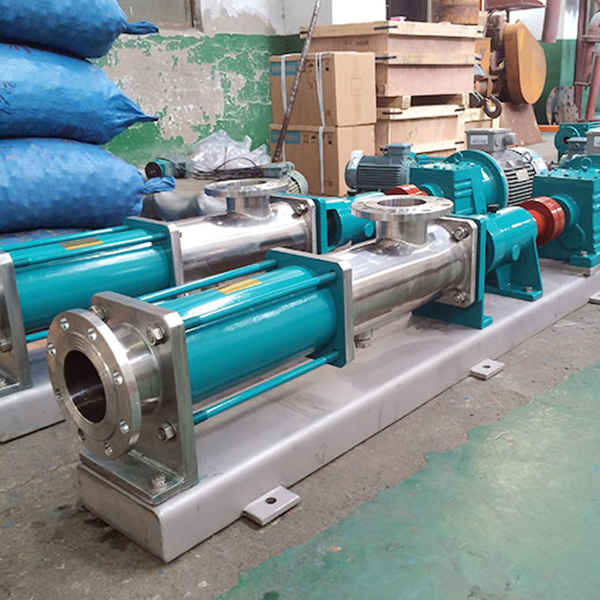

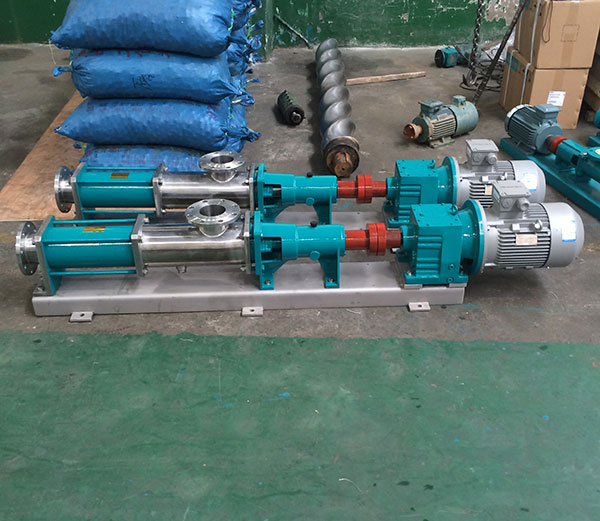

Stainless steel dosing screw pump

stainless steel dosing screw pump is used in all fields widely to feed kinds of medium, running at a constant pressure continuously, without and damage when feeding medium, and change the gauging through adjusting rotation speed ....


Description

Product Tags

Product Description

stainless steel dosing screw pump is used in all fields widely to feed kinds of medium, running at a constant pressure continuously, without and damage when feeding medium, and change the gauging through adjusting rotation speed .


Application

1. Food industry use: transport minced meat, potato salad, paste paste, concentrated juice, jam, vegetable products.
2. Use in the brewing industry: transporting distiller’s grains, yeast, various residues after fermentation and feeding ingredients.
3. Use in sugar industry: syrup, saturated residue, concentrated waste water residue, sugar-containing crystal paste; milk, cheese.
4. Textile industry use: transporting synthetic fiber liquid, viscose liquid, dyestuff, ink, nylon powder liquid.
5. Uses in the paper industry: transporting paper pulp, talc pulp, and glazing resin pulp.
6. Uses in the petroleum industry: transporting a variety of oils, grease products, oil refining sludge, and industrial wastewater.
7. Use in chemical industry: all kinds of latex, suspension, ointment, shampoo, paint, pigment.
8. Construction industry use: transport mortar, plaster, asphalt, tar, mud mortar, paint.
9. Mining industry use: transport oxides and waste water, mine drainage, liquid, scum.

Schematic diagram of working principle


Parameters Table

MODEL


NO.

Speed


r/min

 Flow
m 3 /h
Pressure
MPa
Motor
KW
Head
m
Import
mm
Export
mm
FG25-196020.61.560Dg32Dg25
FG25-296021.22.2120Dg32Dg25
FG30-196050.62.260Dg50Dg40
FG30-296051.23.0120Dg50Dg40
FG35-196080.63.060Dg65Dg50
FG35-296081.24.0120Dg65Dg50
FG40-1960120.64.060Dg80Dg65
FG40-2960121.25.5120Dg80Dg65
FG50-1960200.65.560Dg100Dg80
FG50-2960201.27.5120Dg100Dg80
FG60-1960300.61160Dg125Dg100
FG60-2960301.215120Dg125Dg100
FG70-1960-720450.61560Dg150Dg125


Model Number:G70-1

Flow: 2m³/h;

Head: 40m;

Pressure: 0.6;

Speed: 348rmin;

Efficiency: 70%;
