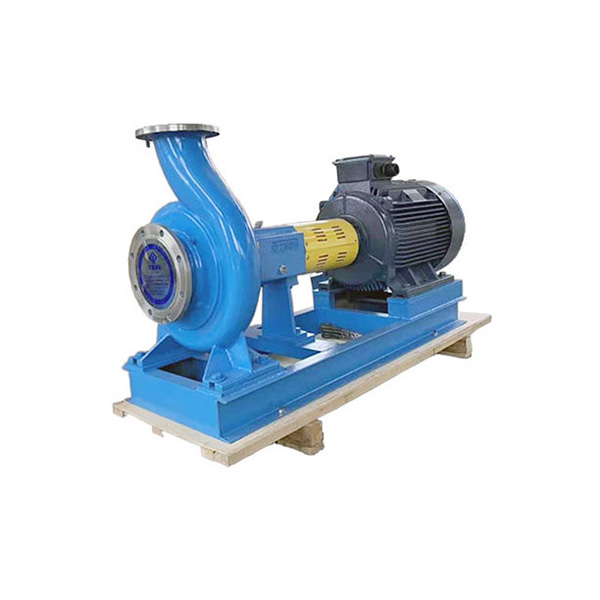

BA type non-clogging pulp pump

BA type pulp pump is a new generation of pulp pump series products optimized by our factory, which is widely used in papermaking, chemical fiber, pulping and other working conditions....


Description

Product Tags

Overview

BA type pulp pump is a new generation of pulp pump series products optimized by our factory, which is widely used in papermaking, chemical fiber, pulping and other working conditions. It is suitable for all kinds of pulp, cotton pulp, wood pulp, chemical fiber and fiber. It has the characteristics of no blockage and wide infusion concentration. The installation size of this series of pumps conforms to the Scampump standard, and the overflow part can be made of various materials, so as to be suitable for different corrosion conditions.

Structural features

a. The BA type pump adopts a semi-open impeller, and the seal adopts a variety of sealing forms such as double end face, single end face, oil seal, packing, dynamic seal, etc., which eliminates the phenomenon of running, running, dripping and leaking, and prolongs the maintenance period.
b. The installation size conforms to the Scampump standard, and the overcurrent parts are made of various materials, so as to be suitable for different corrosion conditions.
c. The temperature of the liquid to be transported is less than or equal to 120°C, and the concentration of the slurry to be transported is 2~5%. When specially designed, it can reach 8%.

Model parameter table

Model

Capacity
m/h
Head


m

Speed

r/min

Efficiency

%

Chroma

%

Shaft power

kw

Motor power

kw

Rating

Use bound

Rating

Use bound

BA125/100-127050-951218-82960702-43.27Y132S1-2/5.5
BA125/100-207050-952025-152960702-3.55.44Y132S2-2/7.5
BA125/100-307050-903036-202960682-38.41Y160M1-2/11
BA125/100-457050-904550-402960602-314.3Y160L-2/18.5
BA150/100-1512090-1601520-91450682-37.2Y160M-4/11
BA150/100-2512090-1602530-151450662-412.37Y160L-4/15
BA150/100-4012095-1504046-301450622-421.1Y200L-4/30
BA150/150-18180140-2401822-121450722-612.25Y160L-4/15
BA150/150-25180140-2402530-181450702-417.5Y200L-4/30
BA150/150-32180150-2303238-201450682-423.1Y225S-4/37
BA150/150-45180150-2304550-401450682-332.43Y225M-4/45
BA200/125-25200160-2802530-181450702-519.45Y200L-4/30
BA200/125-35200160-2803538-301450692-427.62Y225S-4/37
BA200/150-20300250-3502023-161450752-621.78Y200L-4/30
BA200/150-25300220-4002528-201450702-429.17Y225S-4/37
BA200/150-40300220-4004043-371450722-345.37Y250M-4/55
BA200/150-60300220-4006064-681450751-265.33Y280M-4/90
BA200/200-20400300-5002023-171450782-527.92Y225S-4/37
BA200/200-40450320-5504044-361450702-370Y280M-4/90
BA250/200-16500350-7001620-131450762-528.65Y225S-4/37
BA250/200-22500350-7002023-18.51450722-537.8Y225M-4/45
BA250/200-32500350-7003235-281450701-362.2Y280M-4/90
BA250/200-50500300-7505054-471450751-290.74Y315S-4/110
BA250/250-15550380-7801519-121450702-538.5Y225M-4/45
BA250/250-20600620-8002024-151450722-532.67Y225M-4/45
BA250/250-30600400-8003048-361450781-362.8Y280S-4/75
BA300/250-10680450-7501013-8960762-524.36Y250M-6/37
BA300/250-12800500-10001215-10730742-535.31Y280M-8/45
BA300/250-16800500-10001618.5-12960812-443.02Y280M-6/55
BA300/250-25800500-10002528-221450782-469.8Y280M-4/90
BA300/250-32800500-10003234.5-301450682-4102.5Y315M-4/132
BA300/250-201000650-12502022-181450802-568.06Y280M-4/90
BA300/300-101100900-12001012-8960812-436.97Y280S-6/45
BA300/300-201000800-11802022-161450782-469.8Y280M-4/90
BA300/300-30900750-10503034-251450761-396.7Y315M-4/132
BA300/300-40900800-10004044-361450721-3136.11Y315M-4/160
BA350/300-161200980-13501620-131450822-563.74Y280S-4/75
BA350/300-2512601100-13502528-221450802-3107.18Y315M-4/132
BA350/300-351100950-12003538-321450781-3134.37Y315M-4/160
BA350/300-451100950-12004548-421450761-3177.3Y355L-4/220


Power Source:Electric;

Structure:Single-stage Pump;

Voltage:230/380/430V, 380V;

Customized support:OEM, ODM, OBM;
